The vacuum cleaner is a very intelligent vacuum cleaner, as long as you gently press to clean every corner of the home, make the home clean, so here lament the progress of science and technology and the convenience we bring. Today, we explain the application of Xinyongcheng components in the sweeping machine, and give the partners of the production of sweeping vacuum cleaners an application guide of Xinyongcheng components model.

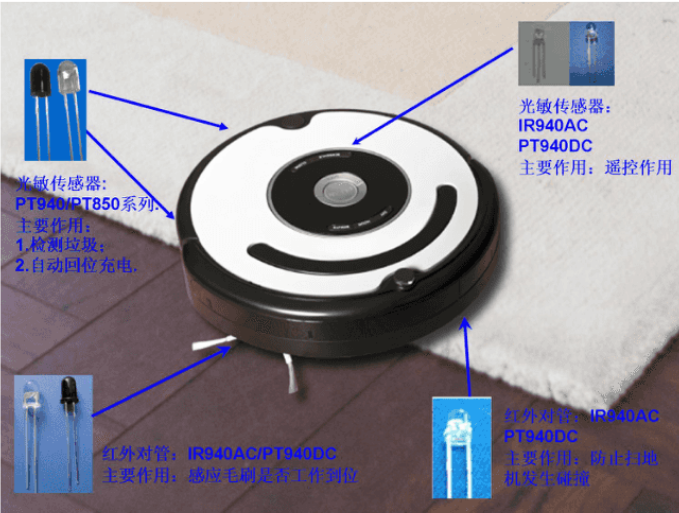

First of all, now introduce all the Xinyongcheng components used in the sweeping machine, including the following machine: infrared receiving tube, infrared emission receiving tube, photosensitive patch IC.

Infrared device action of sweeping machine

Xinyongcheng infrared receiving tube:

PT850 PT40 series of multiple infrared receiving tube models are the most suitable for the application of the infrared receiving tube model to the vacuum cleaner, the main role is: remote control reception signal and distance detection, is the sweeper in the work encountered obstacles, intelligent sweeper through the "buffer plate" in front of the body after sensing and then change the direction. Through the infrared detection device on the fuselage, the intelligent sweeper will even actively avoid obstacles such as steps, and there is almost no cleaning dead corner on the ground.

Infrared transmitting and receiving tube

Infrared transmitting and receiving tube:

IR940 series is mainly applied to the brush of the sweeper, the main role is to sense whether the brush is working in place, mainly divided into four positions, the number of sensing is 4, the position is: front 1, back 1, left 1, right 1. When the machine is running forward, three sensors are effective enough to prevent drops. This is because the machine may run backwards, so the rear sensor is increased to reduce the risk of falling backwards.

IR/PT850 and IR/PT940 are mainly remote control and prevent falls, reduce the risk of falling backward, intelligent charging station positioning (equipped with only 2cm infrared detection distance, can effectively prevent collisions. In addition, three infrared cliff detectors are also placed in the front end of the fuselage bottom to effectively adjust its sensitivity, so as to better protect the product.

Xinyongcheng sensor products

Chip IC

Xinyongcheng's chip IC is mainly applied to the optical reception of the sweeping machine, mainly to facilitate users to understand the application of the sweeping machine, the specific chip IC parameters can be provided to Xinyongcheng project, we will provide the appropriate model to you according to requirements.
