Principle and application of infrared tube DEMO board

2024-04-20

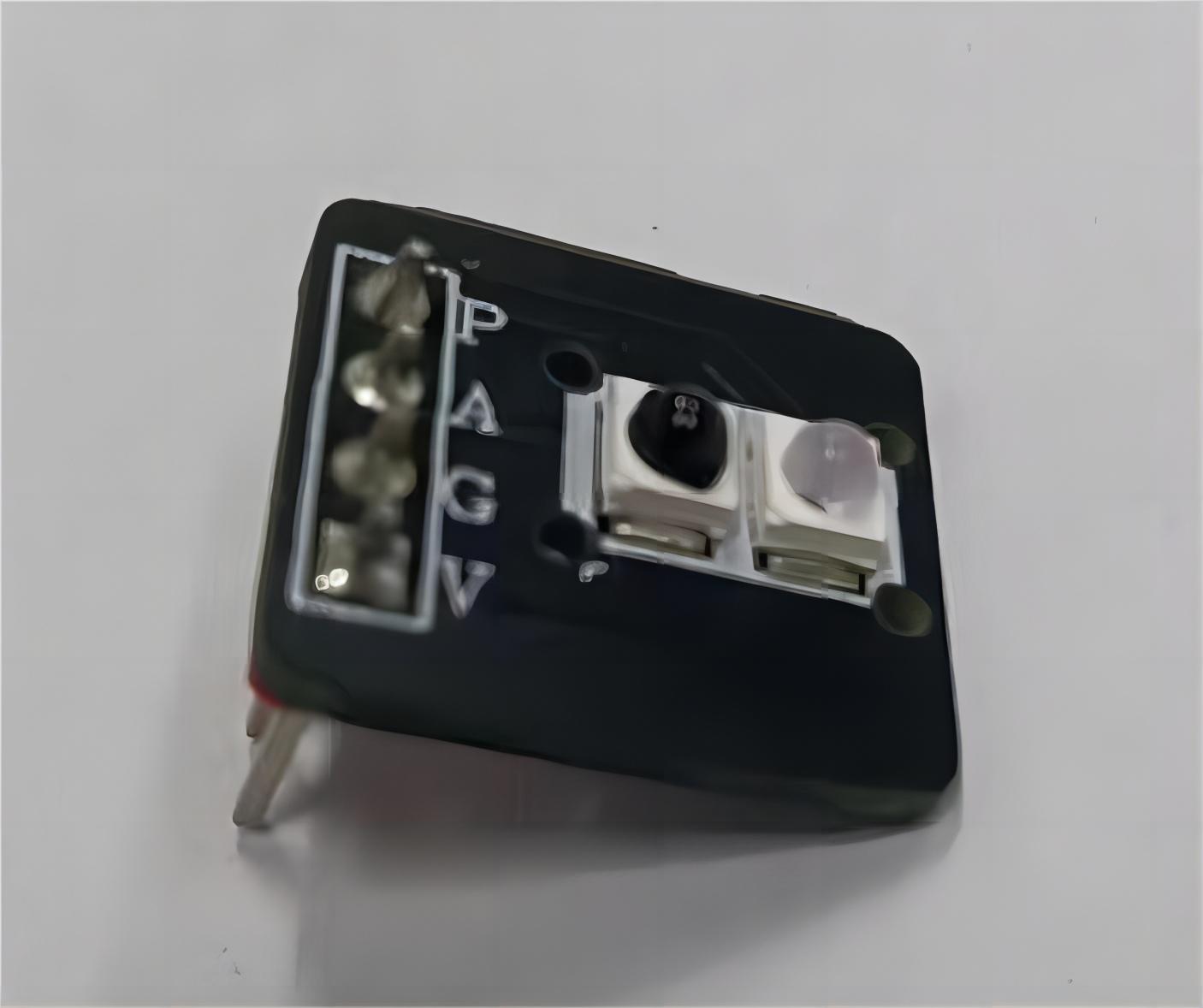

Xinyongcheng photoelectric infrared tube DEMO board is a kind of experimental board used to demonstrate the working principle and performance of infrared tube. It uses high quality infrared tube sensor and precision electronic components, with high accuracy, good stability, strong anti-interference ability and so on.


Infrared tube sensor is a kind of photoelectric sensor based on infrared technology, which is composed of two parts: transmitting tube and receiving tube. The transmitting tube emits infrared light of a specific wavelength, and when it encounters an object, the infrared light is reflected back, received by the receiving tube and converted into an electrical signal output. Due to the characteristics of infrared, this sensor has the advantages of non-contact, fast response, high sensitivity, etc., and is widely used in a variety of automation control, security monitoring, smart home and other fields.


In the infrared tube DEMO board, the transmitting tube and the receiving tube are cleverly integrated together, and various experiments and tests can be carried out conveniently through the connection of the circuit board. The user can observe the change of the electrical signal output of the receiving tube by adjusting the transmitting Angle, distance and the color and material of the object, so as to deeply understand the working principle and performance characteristics of the infrared tube sensor.


In addition, the infrared tube DEMO board is also equipped with a wealth of expansion interfaces and circuit protection functions, which can easily connect and communicate with other electronic devices and modules. Users can realize more complex and diversified control and application scenarios by connecting computers, single chip computers, PLC and other equipment.


In short, the infrared on the tube DEMO board is a very practical experimental tool, which can not only help users deeply understand the working principle and performance characteristics of the infrared on the tube sensor, but also provide strong support for the development and application of various automation control, security monitoring, smart home and other fields
